Specs of angle bar
|
Size |
High(H) | 100mm-900mm |
| Flange width(B) | 100mm-300mm | |
| Web thickness(t1) | 6mm-16mm | |
| Flange thickness(t2) | 8mm-28mm | |
| Length | 6-12m/pc or as your request | |
| Standard | AISI, ASTM, BS, DIN, GB, JIS etc. | |
| Material | SS400, Q 235B,S235JR,Q345B, S355JR etc. | |
| Technique | Hot rolled & Welded | |
| Application | 1.Industrial structure of the steel structure bearing bracket.
2.Underground engineering steel pile and retaining structure. 3.Petrochemical and electric power and other industrial equipment structure 4.Large span steel bridge components 5.Ships, machinery manufacturing frame structure 6.The train, automobile, tractor beam bracket 7.Port of conveyor belt, high speed damper bracket |
|
| Package | Standard seaworthy packing or as required | |
| Port of Shipment | Tianjin Port, China | |
| Date of Delivery | 10-15 days after received the deposit | |
| MOQ | 10T | |
| Production | 5000t/ month | |
Product Details of angle bar
|

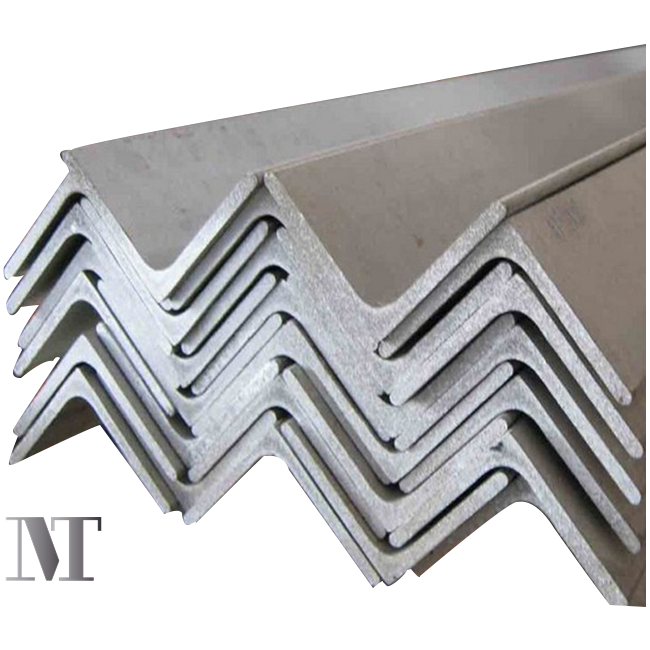

Products：Equal Angle Bar
|
|||||
|
Size
|
Theoretical Weight
|
Size
|
Theoretical Weight
|
Size
|
Theoretical Weight
|
|
mm
|
(kg/m)
|
mm
|
(kg/m)
|
mm
|
(kg/m)
|
|
25*3
|
1.124
|
70*6
|
6.406
|
100*16
|
23.257
|
|
25*4
|
1.459
|
70*7
|
7.398
|
110*8
|
13.532
|
|
30*3
|
1.373
|
70*8
|
8.373
|
110*10
|
16.69
|
|
30*4
|
1.786
|
75*5
|
5.818
|
110*12
|
19.782
|
|
40*3
|
1.852
|
75*6
|
6.905
|
110*14
|
22.809
|
|
40*4
|
2.422
|
75*7
|
7.976
|
125*8
|
15.504
|
|
40*5
|
2.967
|
75*8
|
9.03
|
125*10
|
19.133
|
|
50*3
|
2.332
|
75*10
|
11.089
|
125*12
|
22.696
|
|
50*4
|
3.059
|
80*6
|
7.736
|
125*14
|
26.193
|
|
50*5
|
3.77
|
80*8
|
9.658
|
140*10
|
21.488
|
|
50*6
|
4.465
|
80*10
|
11.874
|
140*12
|
25.522
|
|
60*5
|
4.57
|
90*8
|
10.946
|
140*14
|
29.49
|
|
60*6
|
5.42
|
90*10
|
13.476
|
160*12
|
29.391
|
|
63*4
|
3.907
|
90*12
|
15.94
|
160*14
|
33.987
|
|
63*5
|
4.822
|
100*8
|
12.276
|
160*16
|
38.518
|
|
63*6
|
5.721
|
100*10
|
15.12
|
160*18
|
48.63
|
|
63*8
|
7.7469
|
100*12
|
17.898
|
180*18
|
48.634
|
|
70*5
|
5.397
|
100*14
|
20.611
|
200*24
|
71.168
|
|
Products：Unqual Angle Bar
|
|||||
|
Size (mm)
|
Theoretical Weight (kg/m)
|
Size (mm)
|
Theoretical Weight (kg/m)
|
Size (mm)
|
Theoretical Weight (kg/m)
|
|
25*16*3
|
0.912
|
75*50*5
|
5.339
|
110*70*10
|
13.476
|
|
32*20*3
|
1.717
|
75*50*6
|
4.808
|
125*80*8
|
12.551
|
|
40*25*3
|
1.484
|
70*50*7
|
5.699
|
125*80*10
|
15.474
|
|
40*25*4
|
1.936
|
75*50*8
|
7.431
|
125*80*12
|
18.33
|
|
40*28*3
|
1.687
|
80*50*6
|
5.935
|
140*90*8
|
14.16
|
|
40*28*4
|
2.203
|
90*56*6
|
6.717
|
140*90*10
|
17.475
|
|
45*30*4
|
2.251
|
90*56*7
|
7.756
|
140*90*12
|
20.724
|
|
50*32*3
|
1.908
|
90*56*8
|
8.779
|
160*100*10
|
19.872
|
|
50*32*4
|
2.494
|
100*63*6
|
7.55
|
160*100*12
|
23.592
|
|
56*36*3
|
2.153
|
100*63*7
|
8.722
|
160*100*14
|
27.247
|
|
56*36*4
|
2.818
|
100*63*8
|
9.878
|
180*110*10
|
22.273
|
|
56*36*5
|
3.466
|
100*63*10
|
12.142
|
180*110*12
|
26.464
|
|
63*40*4
|
3.185
|
100*80*7
|
9.656
|
180*110*14
|
30.589
|
|
63*40*5
|
3.92
|
100*80*8
|
10.946
|
200*125*12
|
29.761
|
|
63*40*6
|
4.638
|
100*80*10
|
13.476
|
200*125*14
|
34.436
|
|
63*40*7
|
5.339
|
110*70*8
|
10.946
|
||
Application

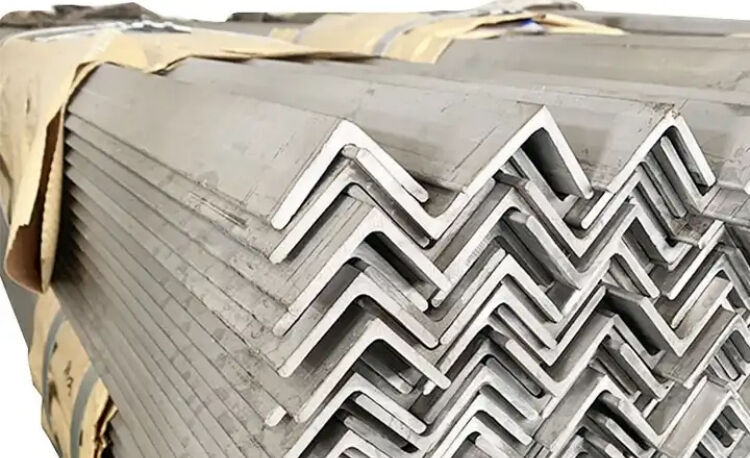

Packaging
