Video of H beam
Specs of H beam
|
Technique
|
Hot Rolled Structure Steel–H beam/I beam/Angle Bar/C Channel/Flat Bar
|
|
|
Material
|
Q195, Q215,Q235,Q345,ST37, A36,45# ,16Mn
|
|
|
Height
|
200-1200mm
|
|
|
Thickness
|
5mm-60mm
|
|
|
Length
|
6m-12m
|
|
|
Surface
|
Bare,Black,Oiled,Shot Blasted, Paint, Galvanized,or as your request
|
|
|
Standard
|
AiSi ASTM JIS DIN EN BS GB
|
|
|
Delivery Time
|
15-20 working days
|
|
|
Surface
|
Painted,galvanized or as required
|
|
|
Application
|
Manufacturing cars and tractors,hoop iron, tools and mechanical parts, as building frame structure, escalator.
|
|

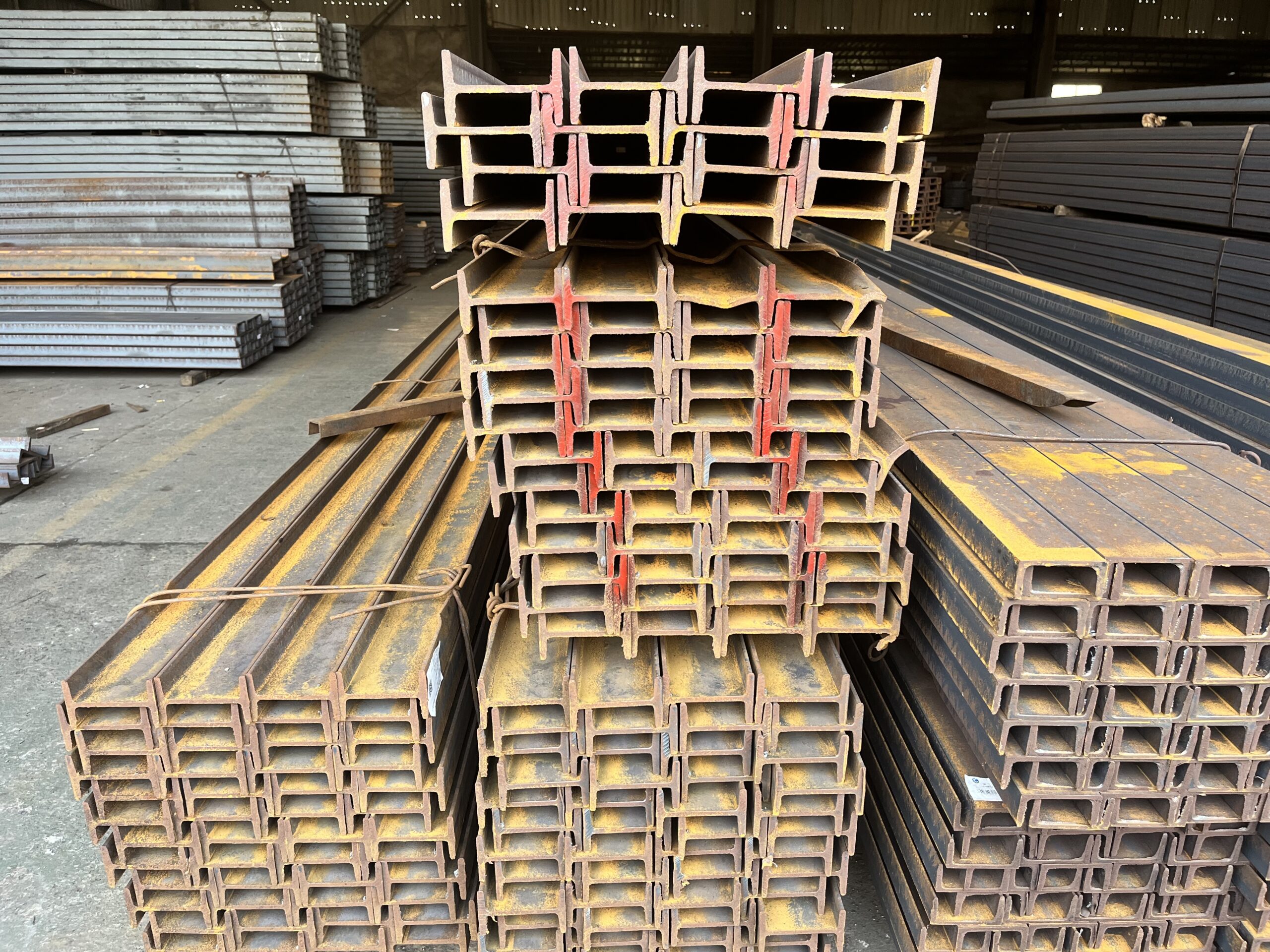

Product Details of H beam
| H Beam Specification | |||||
| size | w/m | size | w/m | size | w/m |
| 100*50*5*7 | 9.54 | 250*255*14*14 | 82.2 | 400*400*13*21 | 172 |
| 100*100*6*8 | 17.2 | 294*200*8*12 | 57.3 | 400*408*21*21 | 197 |
| 125*60*6*8 | 13.3 | 300*150*6.5*9 | 37.3 | 414*405*18*28 | 233 |
| 125*125*6.5*9 | 23.8 | 294*302*12*12 | 85 | 440*300*11*18 | 124 |
| 148*100*6*9 | 21.4 | 300*300*10*15 | 94.5 | 446*199*7*11 | 66.7 |
| 150*75*5*7 | 14.3 | 300*305*15*15 | 106 | 450*200*9*14 | 76.5 |
| 150*150*7*10 | 31.9 | 338*351*13*13 | 106 | 482*300*11*15 | 115 |
| 175*90*5*8 | 18.2 | 340*250*9*14 | 79.7 | 488*300*11*18 | 129 |
| 175*175*7.5*11 | 40.3 | 344*354*16*16 | 131 | 496*199*9*14 | 79.5 |
| 194*150*6*9 | 31.2 | 346*174*6*9 | 41.8 | 500*200*10*16 | 89.6 |
| 198*99*4.5*7 | 18.5 | 350*175*7*11 | 50 | 582*300*12*17 | 137 |
| 200*100*5.5*8 | 21.7 | 344*348*10*16 | 115 | 588*300*12*20 | 151 |
| 200*200*8*12 | 50.5 | 350*350*12*19 | 137 | 596*199*10*15 | 95.1 |
| 200*204*12*12 | 72.28 | 388*402*15*15 | 141 | 600*200*11*17 | 106 |
| 244*175*7*11 | 44.1 | 390*300*10*16 | 107 | 700*300*13*24 | 185 |
| 244*252*11*11 | 64.4 | 394*398*11*18 | 147 | 792*300*14*22 | 191 |
| 248*124*5*8 | 25.8 | 400*150*8*13 | 55.8 | 800*300*14*26 | 210 |
| 250*125*6*9 | 29.7 | 396*199*7*11 | 56.7 | 900*300*16*28 | 243 |
| 250*250*9*14 | 72.4 | 400*200*8*13 | 66 | ||
Application
Appliance cast housing–Galvanized sheet is strong and excellent rust prevention, beautiful and durable, resist daily erosion, extend the service life of household appliances.
Garage gate–Reliable strength, used in the garage, made of gate plate, can withstand frequent opening and closing vibration, weather resistance and corrosion prevention.
Cable trough protection cable–Because of its version, it is processed as a wire slot, orderly laying cables, anti-electromagnetic interference, anti-rust protection lines.
Packaging
FAQ
| Q1: What is the MOQ for structure steel? | 3 tons for each size |
| Q2: What is your payment term? | We operate on T/T (Telegraphic Transfer) first. Deposit & balance ratio: Flexible negotiation (typically 30% deposit, 70% before shipment). Full SWIFT/BIC codes and proforma invoice (PI) provided within 24hrs post-order confirmation. |
| Q3: How is quality compliance guaranteed? | Our 4-Stage Verification System: ① Mill Test Certificates (MTC) with traceable batch numbers; ② Dimensional/spectral analysis in ISO 9001 & university-partnered labs; ③ Optional third-party inspections (SGS/BV at cost); ④ Real-time production inspection records (photos/videos shared pre-shipment). |
| Q4: What are your production lead times? | Standard stock: 7 working days after deposit clearance. Custom processing: 15-25 days (Technical review within 48hrs). |
| Q5: What custom processing capabilities do you offer? | Key services at Wuxi & Wuhan Centers: Cutting: Laser (±0.2mm), Waterjet, Slitting Surfacing: Passivation, Electropolishing, Anodizing CNC Machining: ±0.05mm tolerance, 0.1° angular accuracy MOQ: 2MT for custom orders; DFM analysis provided. |
| Q6: How do you manage global logistics? | Trade Terms: EXW, FOB, CIF, DAP, DDP Key Routes: Asia/Oceania: 7-12 days via Shanghai/Shenzhen ports Europe/N.America: 20-35 days Export docs: CO, FORM E, CE/PED (*on demand) |
| Q7: What is your defective goods policy? | Claim window: 7 calendar days post-delivery. Process: ① Joint video audit within 24hrs; ② Identify the cause of the problem; ③ Compensation for proven non-conformance |
